TAIWAN CALIBRE 26pc Press And Pull Sleeve Kit Bush Bearing Removal Insertion Tool Set,bushing removal tool

CAK0008

ITEM NO:CAK0008	CALIBRE 26pc Universal Remove & Install Sleeve Kit
Size:	* A Sleeves (11pc):Yellow Zinc Plating、MATERIAL:Steel * D44 × d34、D46 × d36、D54 × d44、D56 × d46、D58 × d48、D66 × d56、 * D68 × d58、D70 × d60、D78 × d68、D80 × d70、D82 × d72 * B Sleeves (9pc):Zinc Plating、MATERIAL:Steel * D48 × d38、D50 × d40、D52 × d42、D60 × d50、D62 × d52、 * D64 × d54、D72 × d62、D74 × d64、D76 × d66 * Spindles (4pc):Manganese Phosphate、MATERIAL:SCM440 * M10 × P1.5、M12 × P2.0、M14 × P2.0、M16 × P2.5 * Step discs (2pc):Manganese Phosphate、MATERIAL:S45C * Inner Ring Ø20 * Side A:Ø36、Ø42、Ø48、Ø54、Ø60、Ø66、Ø72、Ø78 * Side B:Ø42、Ø48、Ø54、Ø60、Ø66、Ø72

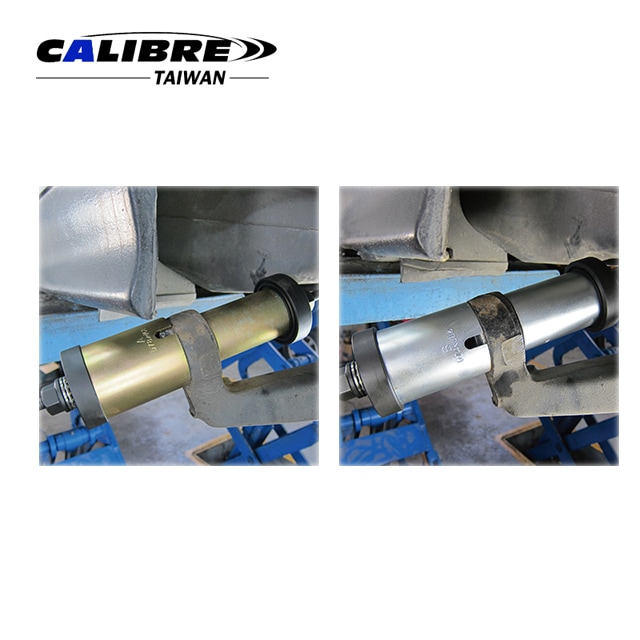

Feature:	* Universal application of step discs fit varioius types of vehicles * Easy work to remove and install * Bearing bushing Silent bushing * Hydraulic bearing Rubber bearing * Step discs are two-sided. Each side has tracks for fitting sleeves provided (Feature 1). A time- and * space-saving design. * Each sleeve has a window (red square in Feature 2) for observing the process of bushing or bearing * removal/installation, preventing busing or bearing overworks. * Spindle nuts are equipped with bearings (Feature 3), reducing frictions and saving energy. * Spindles are square threaded (Feature 4), featuring its strength and durability.
How to use:	Easy work to remove and install : * 1) Bearing bush * 2) Silent bearing * 3) Hydraulic bearing * 4) Rubber bearing
Packaging:	* 1Set/Blow Mould Case * 1Set/18/19kgs/1.1'
